小型气动滑台(长行程型)

Product Description

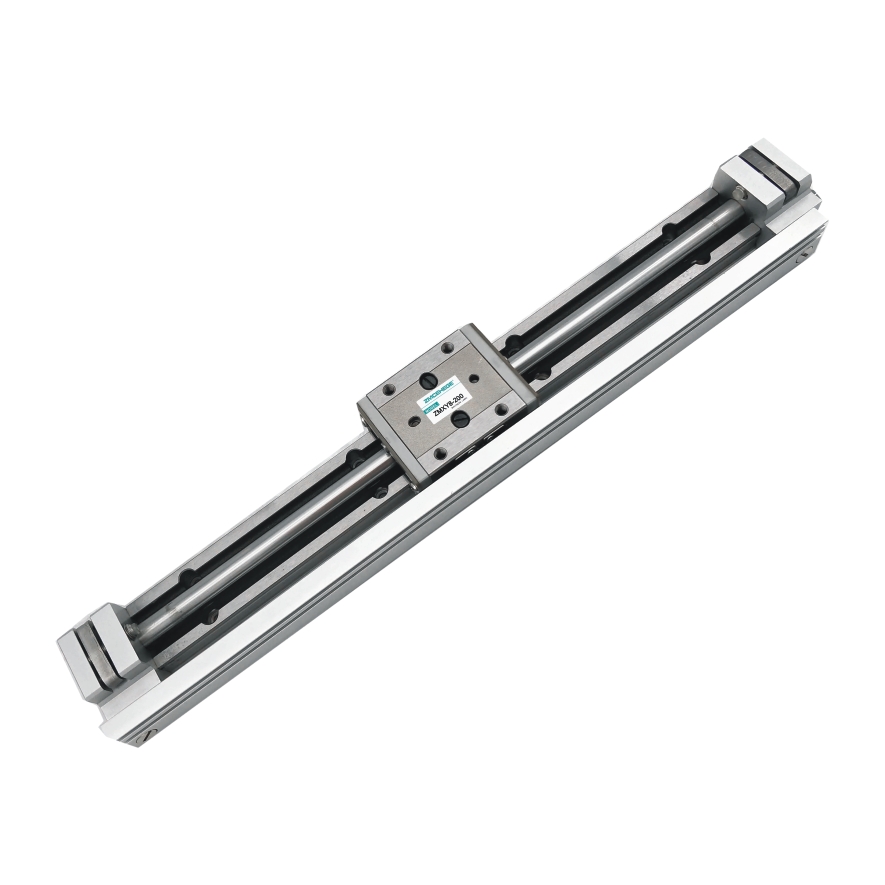

On linear guide rail, a magnetic coupling rodless cylinder is built-in.

在直线导轨上，内置磁偶式无杆气缸。

Compared with ZMXW series, external dimensions is reduced and weight is lighter, but allowable torque is increased.

与ZMXW系列比较，外形尺寸减小、轻，但允许力矩增大。

Compared with ZMXP series, stroke is greatly increased,maximum stroke of ZMXY12 series is 400 mm.

与ZMXP系列比较，行程大大增加，ZMXY12系列最大行程为400mm。

Categories

tel-phone

13817455525

DetailMessage

Cylinder bore(mm) 缸径(mm)		6	8		12
Using fluid 使用流体		Air(without oil supply) 空气(不给油)
Action mode 动作方式		Double action 双作用
Operating pressure range (MPa) 使用压力范围MPa		0.2~0.55
Environment and fluid temperature 环境及流体温度		-10~+60℃(Not frozen) -10~+60℃(未冻结)
Using piston speed 使用活塞速度mm/s		50~400(metal stroke adjuster 50~200) 50~400(金属调程器50~200)
Buffer 缓冲		Cushion buffering 垫缓冲 Hydraulic buffer (not available in φ6, φ8) 液压缓冲器(φ6，φ8没有) No buffering (when using a metal stroke adjuster) 无缓冲(金属调程器时)
Stroke adjustment range 行程调整范围	Rubber stroke adjuster 橡胶调程器	(One side)0~5 (一侧)0~5
	Hydraulic buffer 液压缓冲器	－		0~15
	Metal stroke adjuster 金属调程器	(One side)0~5 (一侧)0~5
Stroke length tolerance mm 行程长度公差mm		+1.0 0
Connecting pipe bore 接管口径		M5×0.8
Magnetic retention force (N) 磁性保持力N		19	34		77
