超薄型气动滑台(十字滚柱导轨)

Product Description

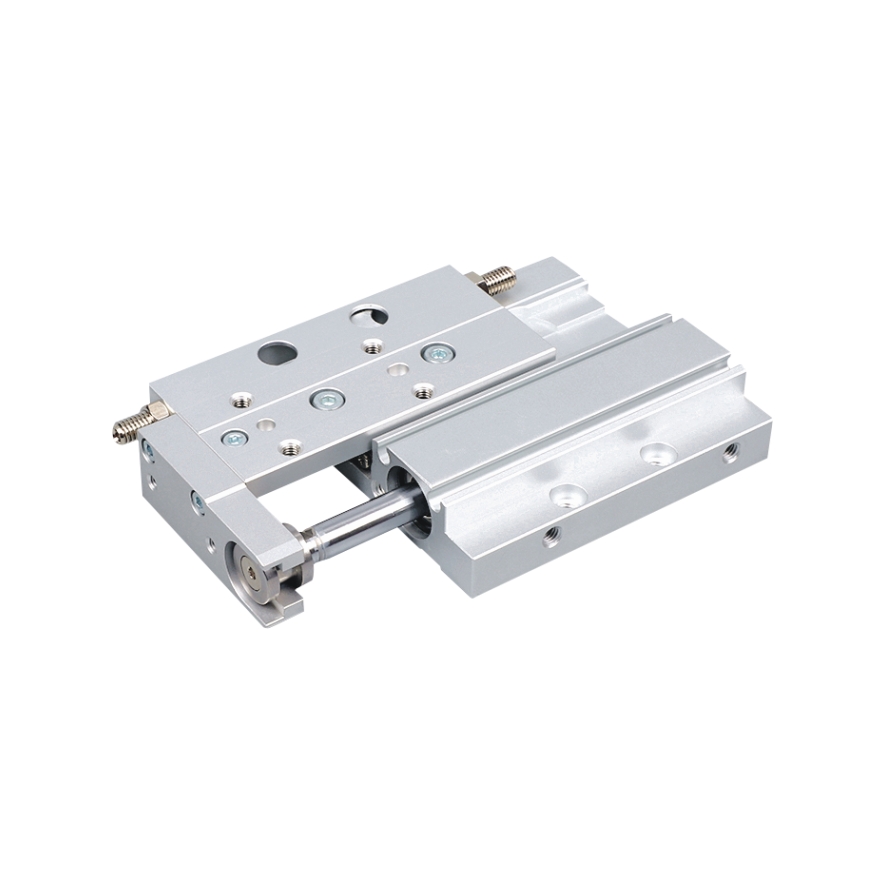

*Flat design, the cylinder and guide bearing are installed on the same horizontal plane, reducing the overall height by 1/3.

*扁平设计，气缸与导向轴承安装在同一水平面上，整体高度减少1/3。

*Standard type built-in magnetic ring, magnetic switches can be installed.

*标准型内置磁环，可安装磁性开关。

*Adopting a cross roller guide rail design, with low friction and long service life.

*采用十字滚柱导轨设计，摩擦力小，寿命长。

*Standard type with stroke adjuster (within 10mm).

*标准型带行程调整装置(10mm以内)。

*The pneumatic sliding table can be fixed from the side and tail, making installation convenient.

*气动滑台可从侧面及尾部固定，安装方便。

Categories

tel-phone

13817455525

DetailMessage

Cylinder bore(mm) 缸径(mm)	6	12		16		20
Using fluid 使用流体	Air 空气
Action mode 动作方式	Double action 双作用
Maximum operating pressure 最高使用压力	0.7MPa
Minimum operating pressure 最低使用压力	0.15MPa
Environment and fluid temperature 环境及流体温度	-10℃~+60℃(but not frozen) -10℃~+60℃(但未冻结)
Piston speed 活塞速度	50~500 mm/s
Buffer 缓冲	Rubber buffering at both ends 两端带橡胶缓冲
Stroke length tolerance 行程长度公差			+1.0 0		(mm)
Stroke adjustment range 行程调整范围	Forward end is 5mm，backward end is 5mm 前进端5mm，后退端5mm
*Oil supply 给油	No need 不需要
Connecting pipe bore 接管口径	M3×0.5	M5×0.8
