气缸系列

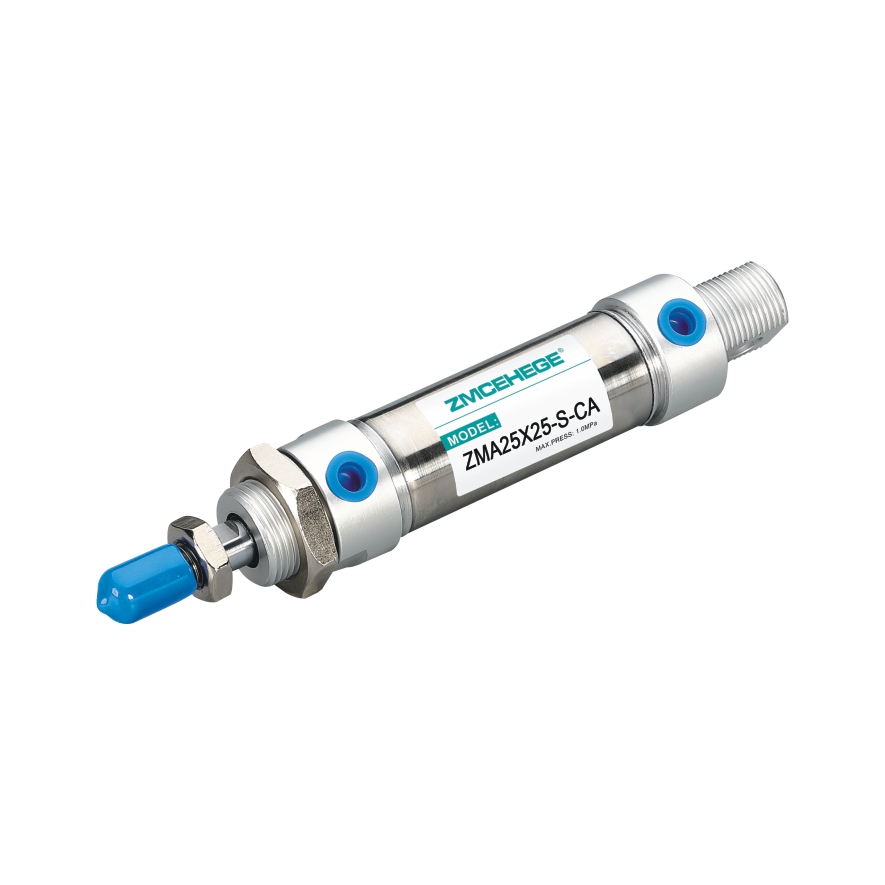

不锈钢迷你气缸

Product Description

1. Implement the company's standards;

1、执行本企业标准；

2. The piston seal adopts a special-shaped bidirectional sealing structure, which is compact in size and has oil storage function;

2、活塞密封采用异型双向密封结构，尺寸紧凑，有储油功能；

3. The front and rear covers are equipped with fixed anti-collision pads, which can reduce the impact of cylinder reversing;

3、前后盖带固定式防撞垫，可减少气缸的换向冲击；

4. Multiple rear cover forms make cylinder installation more convenient;

4、多种后盖形式，使气缸安装更方便；

5. The front and rear covers are connected to the stainless steel cylinder body with a riveted roll wrap structure, ensuring reliable connection;

5、前后盖与不锈钢缸体采用铆合辊包结构，连接可靠；

6. The cylinder body is made of high-precision stainless steel pipes, which have high strength and corrosion resistance;

6、缸体采用高精度不锈钢管，强度高，抗腐蚀；

7. Multiple specifications of cylinders and cylinder installation accessories are available for customers to choose from and use;

7、多种规格的气缸及气缸安装附件可供客户选择使用；

8. All cylinders in this series are magnetized.

8、此系列气缸全部附磁。

Categories

tel-phone

13817455525

DetailMessage

Inner diameter (mm)
内径(mm)

Action type
动作型式

ZMSA/ZMTA

Single action type
单动型

－

ZMAR

Double action type
复动型

ZMA/ZMAD/ZMAJ

Double action type
复动型

ZMAC/ZMACD/ZMACJ

double action buffer type
复动缓冲型

Working medium
工作介质

Air (passing through over 40μm filter)
空气(经40μm以上滤网过滤)

Operating pressure range
使用压力范围

Double action type
复动型

0.15~1.0MPa(22~145psi)(1.5~10.0bar)

Single action type
单动型

0.2~1.0MPa(28~145psi)(2.0~10.0bar)

Ensure pressure resistance
保证耐压力

1.5MPa(215psi)(15bar)

Operating temperature range
使用温度范围℃

-20~70

Operating speed range
使用速度范围mm/s

50~500

Stroke tolerance range
行程公差范围

0~150

+1.0
0

>150

+1.5
0

Buffering type
缓冲型式

ZMAC, ZMACD, ZMACJ series: adjustable buffering;
Other series: collision cushion
ZMAC,ZMACD,ZMACJ系列：可调式缓冲；其它系列：防撞垫

Connecting pipe bore
*接管口径

M5×0.8

PT1/8

PT1/4
