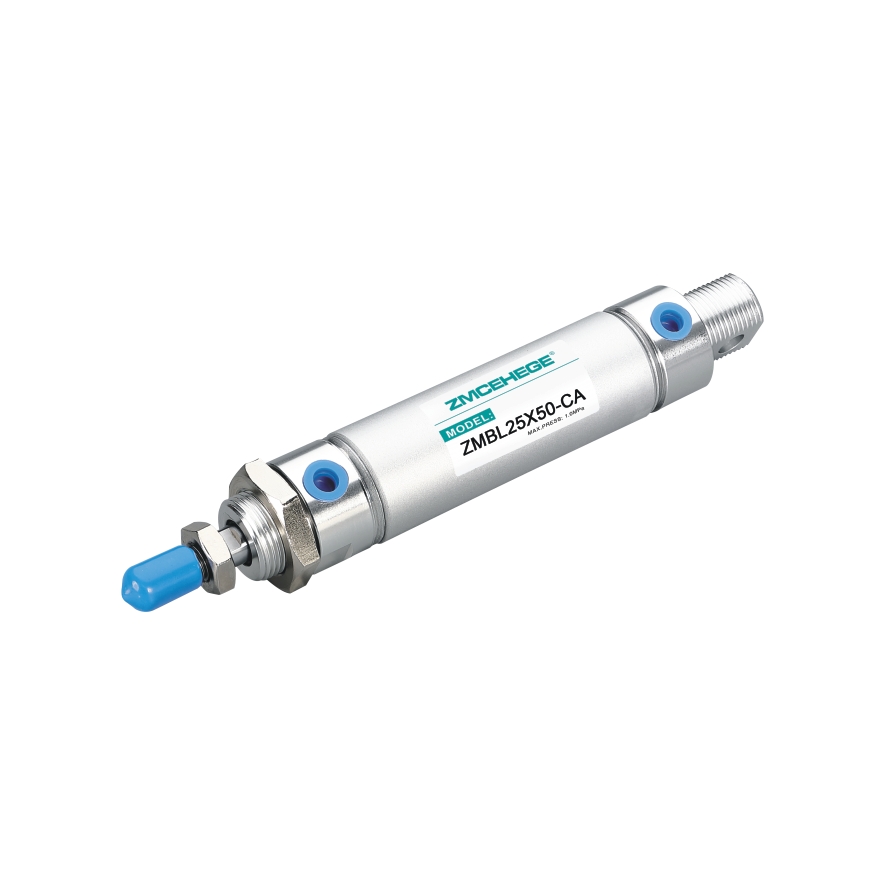

铝合金迷你气缸

Product Description

1. Implement this enterprise standard and use aluminum round tube cylinder body;

1、执行本企业标准，采用铝圆管缸体；

2. The front and rear covers are connected to the aluminum alloy cylinder body with a riveted roll wrap structure, ensuring reliable connection

2、前后盖与铝合金缸体采用铆合辊包结构，连接可靠；

3. The piston seal adopts a special-shaped bidirectional sealing structure, which is compact in size and has oil storage function;

3、活塞密封采用异型双向密封结构，尺寸紧凑，有储油功能；

4. The front cover adopts self-lubricating bearing guidance, with good lubrication and guidance performance:

4、前端盖采用自润滑轴承导向，润滑与导向性能好；

5. Multiple rear cover forms make cylinder installation more convenient;

5、多种后盖形式，使气缸安装更方便；

6. Multiple specifications of cylinders and cylinder installation accessories are available for customers to choose from and use;

6、多种规格的气缸及气缸安装附件可供客户选择使用。

Categories

tel-phone

13817455525

DetailMessage

Inner diameter (mm) 内径(mm)			20	25	32			40		50	63
Action type 动作型式	ZMSBL/ZMTBL		Single action type 单动型							－
	ZMBL/ZMBLD/ZMBLJ		Double action type 复动型
	ZMBLC/ZMBLCD/ZMBLCJ		Double action buffering type 复动缓冲型
Working medium 工作介质			Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Operating pressure range 使用压力范围		Double action type 复动型	0.15~1.0MPa(22~145psi)(1.5~10.0bar)
		Single action type 单动型	0.2~1.0MPa(28~145psi)(2.0~10.0bar)
Ensure pressure resistance 保证耐压力			1.5MPa(215psi)(15bar)
Operating temperature range 使用温度范围℃			-20~70
Operating speed range 使用速度范围			Single action type：50~800mm/s Double action type：30~800mm/s 单动型：50~800mm/s 复动型：30~800mm/s
Stroke tolerance range 行程公差范围			0~150			+1.0 0	>150		+1.5 0
Buffering type 缓冲型式			ZMBLC,ZMBLCD,ZMBLCJ: adjustable buffering; Other: collision cushion ZMBLC,ZMBLCD,ZMBLCJ：可调缓冲；其它：防撞垫
Connecting pipe bore *接管口径			PT1/8					PT1/4
