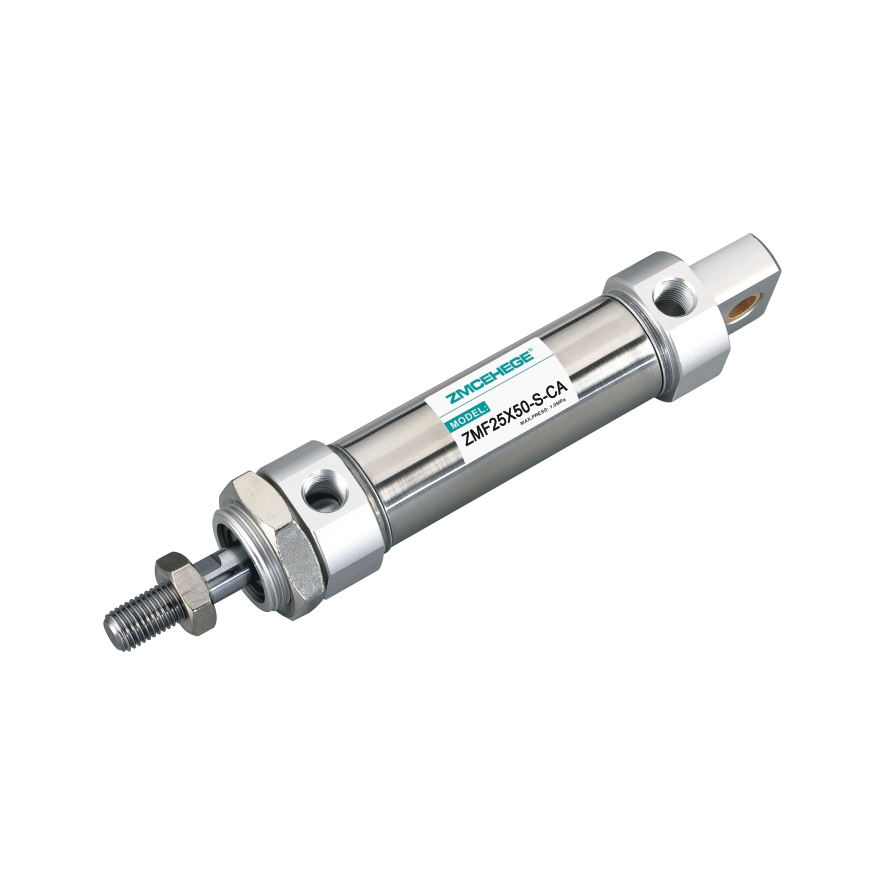

不锈钢迷你气缸

Product Description

1. Implement JIS standards;

1.执行JIS标准；

2. The piston seal adopts a special-shaped bidirectional sealing structure, which is compact in size and has oil storage function;

2.活塞密封采用异型双向密封结构，尺寸紧凑，有储油功能；

3. The front and rear covers are equipped with fixed anti-collision pads, which can reduce the reversing impact of cylinder;

3.前后盖带固定式防撞垫，可减少气缸的换向冲击；

4. Multiple rear cover forms make cylinder installation more convenient;

4.多种后盖形式，使气缸安装更方便；

5.The front and rear covers are connected to the stainless steel body with a riveted rolling structure, ensuring reliable connection;

5.前后盖与不锈钢缸体采用铆合滚包结构，连接可靠；

6. The cylinder block is made of high-precision stainless steel pipes, which have high strength and corrosion resistance;

6.缸体采用高精度不锈钢管，强度高，抗腐蚀；

7.For cylinders with the same bore and stroke, the length of ZMF series cylinders is smaller than that of ISO6432 standard cylinders;

7.同缸径同行程气缸，ZMF系列气缸比IS06432标准气缸长度小；

8. Multiple specifications of cylinders and cylinder installation accessories are available for customers to choose from.

8.多种规格的气缸及气缸安装附件可供客户选择使用。

Categories

tel-phone

13817455525

DetailMessage

Inner diameter (mm) 内径(mm)		20	25			32		40
Action type 动作型式		Double action type, Single action extrusion type, Single action introduction type, Double action buffer type 复动型、单动押出型、单动引入型、复动缓冲型
Working medium 工作介质		Air (passing through over 40μm filter) 空气(经40μm以上滤网过滤)
Operating pressure range 使用压力范围	Double action type 复动型	0.15~0.7MPa(22~100psi)(1.5~7.0bar)
	Single action type 单动型	0.2~0.7MPa(28~100psi)(2.0~7.0bar)
Ensure pressure resistance 保证耐压力		1.5MPa(215psi)(15bar)
Operating temperature range 使用温度范围℃		-20~70
Operating speed range 使用速度范围mm/s		Double action type: 30~800, Single action type: 30~800 复动型：30~800，单动型30~800
Stroke tolerance range 行程公差范围		0~150		+1.0 0	＞150		+1.5 0
Buffering type 缓冲型式		ZMFC, ZMFCD, ZMFCJ series: adjustable buffering; Other series: collision cushion ZMFC、ZMFCD、ZMFCJ系列：可调式缓冲；其它系列：防撞垫
Connecting pipe bore 接管口径		PT1/8						PT1/4
